The LPD Mag Provides a Silent Sigh of Relief to Chicago Residential Building Pump Room

A residential building in downtown Chicago was having repeated failures of their pumps with ECM motors. The LPD Mag, a high efficiency, low pressure drop Y-Strainer with a Neodymium Magnet, from the Metraflex Company, proved to be the perfect solution.

Download PDF Version >

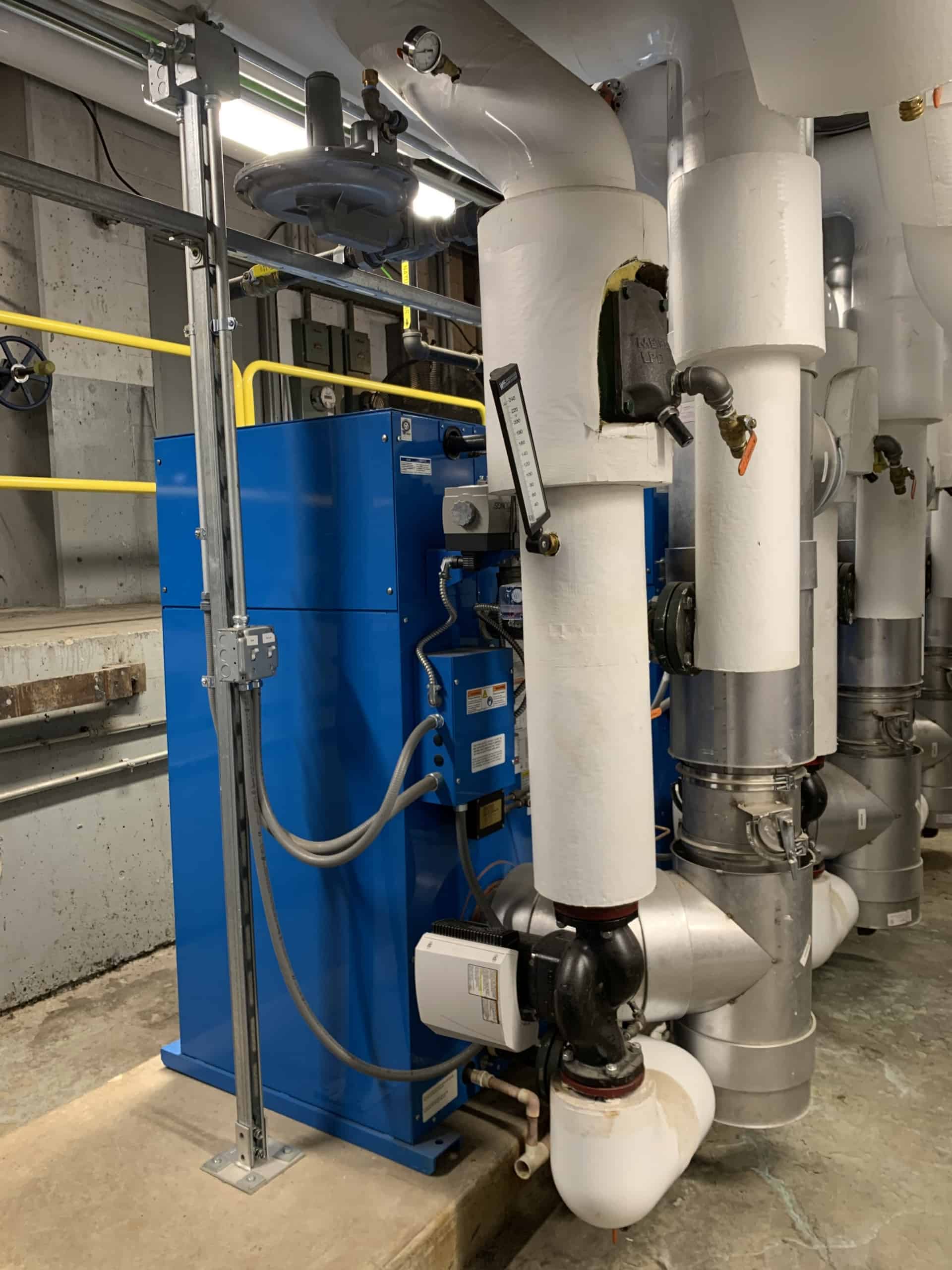

A residential condo building in downtown Chicago was experiencing repeated pump failures.  First the pumps started making excessive noise before starting to leak or seizing up. This new, closed-loop system consisted of 11 individual pumps with ECM motors, 11 LPD Y-Strainers, and boilers that utilized copper heat exchangers.

Since the system was put into service in 2017, AMS Mechanical Systems were brought in to replace 30 Pumps with ECM motors due to pump failures within the first two years. Having to replace a pump is no easy or cheap task. “In just one year alone we replaced more than a dozen pumps,” explained John Lueder, Client Manager at AMS.

Looking at the pumps, it became evident that the powerful magnets in the ECM motors were attracting iron oxides and other magnetic particulates into the wet rotor of the pump.  The buildup on the rotor either wore through the housing, resulting in a leak, or the pump seized up.

“It is a brand-new system,” says Lueder “so it was weird when the pumps kept failing.”  The source of the iron oxides causing the trouble was the carbon steel pipe.  Additionally, further analysis determined that the copper heat exchanger was causing galvanic corrosion of the carbon steel pipe.  This resulted in additional iron oxides, which ultimately found their way into the ECM pump wet rotor and caused failure.

When trying to identify a solution to this problem, Lueder consulted with Dan Watkins, Vice President of Bornquist, the local manufacturer’s rep of Metraflex, who also assisted in the initial design of the system. Watkins is very familiar with the LPD Mag Y-Strainer from Metraflex and knew it would be the perfect solution.

LPD Mag Retrofit Kit Added to Existing LPD Y-Strainers

Identifying a Smart Solution

According to Dan Watkins, “Almost every single pump failure was due to excessive debris; the iron oxides were definitely causing issues”.

Because this system already had 11 standard LPD Y-Strainers supplied by Metraflex, the solution seemed simple: The LPD Mag Retrofit Kit. Simply remove and replace the standard LPD cover plate with the retrofit cover plate that includes a dry well for the powerful Neodymium magnet.

“It was like a no brainer,” Lueder says. “We felt better about trying something with minimal effort and a low price point after we have spent thousands replacing failed pumps. The installation was easy and there was no draw back to using them.”

Preparing For Blow Down

Preparing For Blow Down

Dave Smolen, Service Technician with AMS had the same opinion. “The kit was simple to install and intriguing. I was willing to do anything to help me in not having to replace these pumps so often.”

“These LPD Mag cover plates have been installed for 9 months now and I have had no troubles with the ECM pumps”, explained Smolen.

Now it was time to blow down the LPD Mag strainers to clean out any debris or iron oxides.

Show Time!

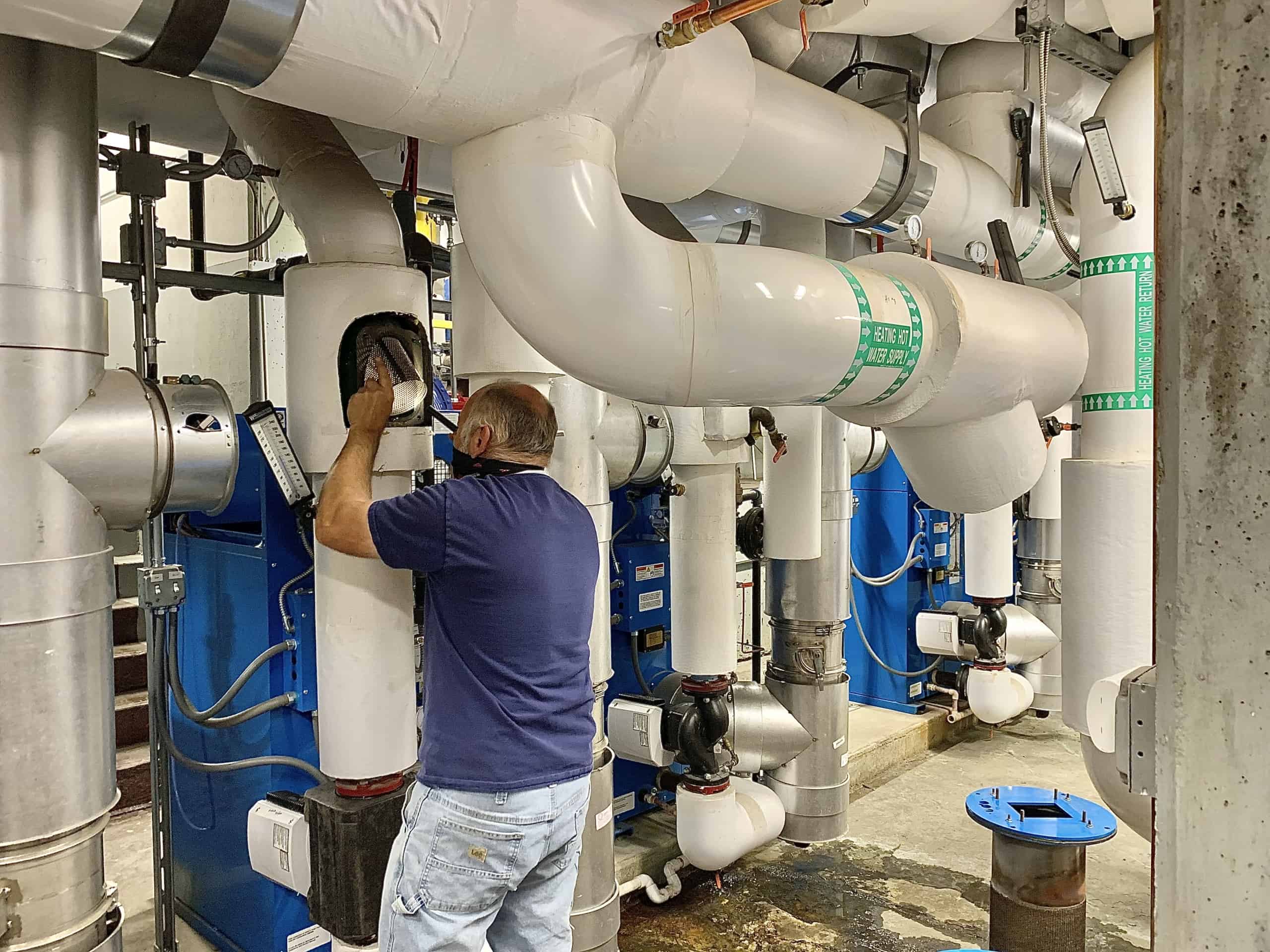

The LPD Mags were blown down in accordance with the instruction pamphlet that is provided with the product. The pumps were on and pressurized and 150⁰ F, at 25 PSI.  Following the instructions, the magnet was pulled halfway out, the valve was opened, then the remaining length of magnet was pulled out. This process pulls the metallic particles down into the blow off port, allowing for a clean blow out.

One of the unique advantages of the LPD Mag strainers is that you can blow them down with the pumps running, as well as with the system shut. “The blow down process went well. We needed to be more prepared and ready for the rush of water, but the magnet held the particulate really well,” explained Lueder. “The instructions made sense and it worked to remove the metal particulate in the line.”

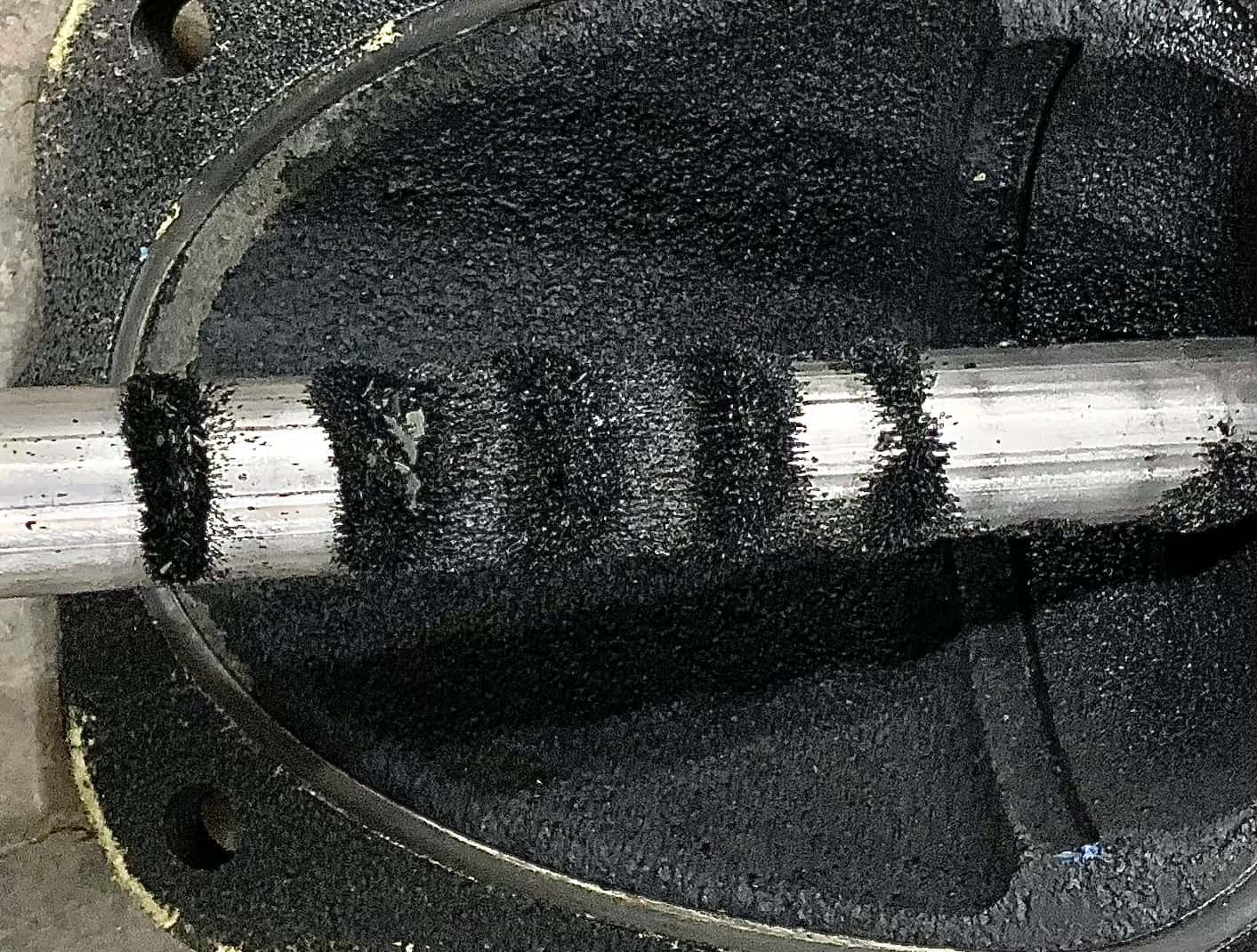

Figure 1 The LPD Mag cover plate and attracted particulates shown before the blow down of the second LPD Mag Y Strainer

When blown down, the first strainer released a large cloud of black sediment followed by relatively clear water.

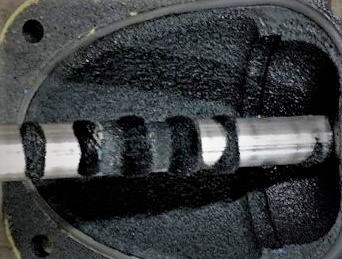

For the second strainer, the system was shut down and the cover plate was removed completely to get a sense of what is being attracted to the magnet (Figure 1).

After seeing the large accumulation of sludge/iron oxide that the magnet had attracted, it was time to re-install the cover plate and blow down the second strainer.

Third strainer to be blown down was installed at a higher elevation and required a hose to direct the water into a container

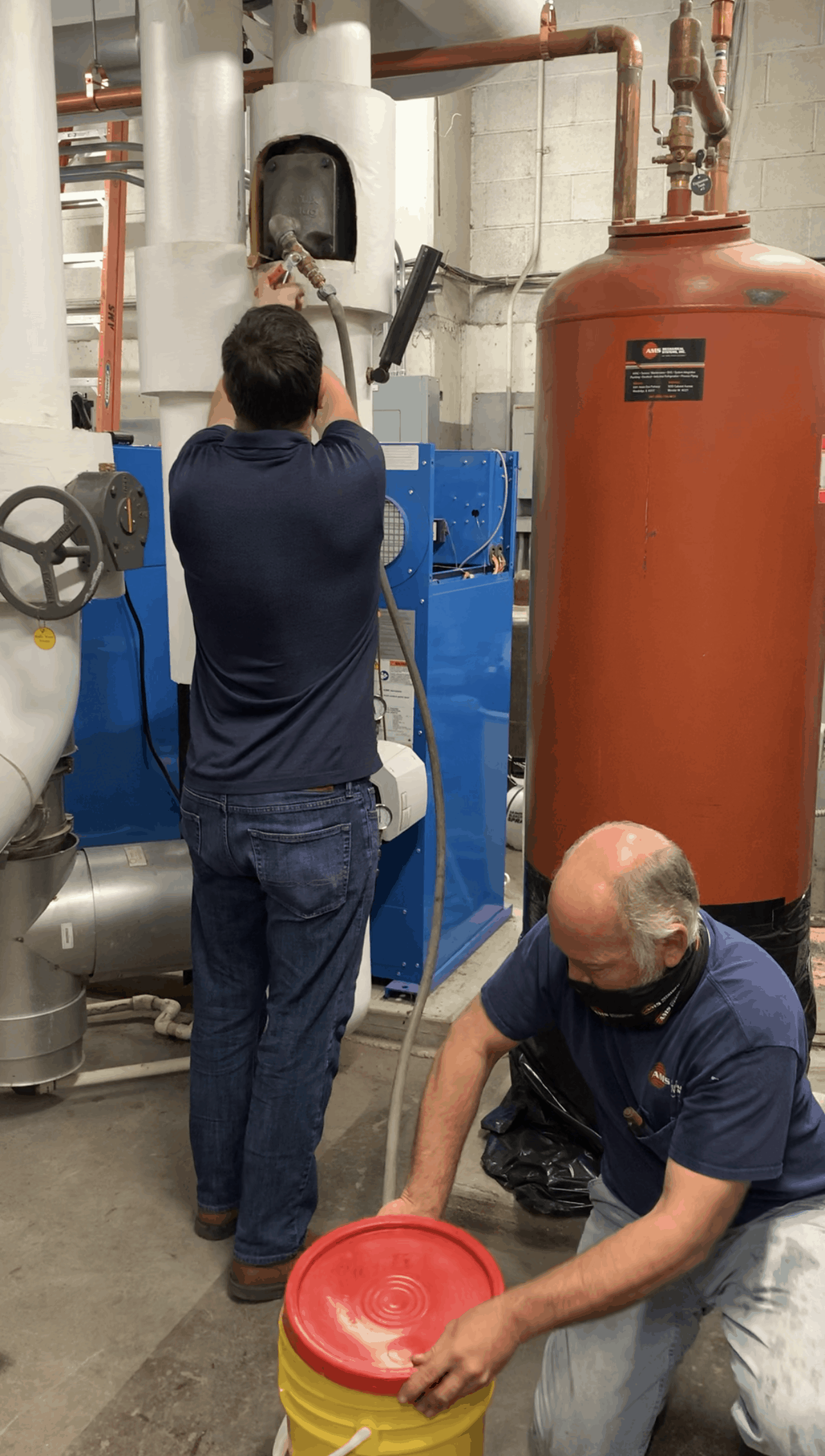

The system remained on and the engineers held a large bucket to capture debris from the blow down.

The third strainer to be blown down was installed at a higher elevation and required a hose to direct the water into a container.  After hooking up the hose to the blow down valve, the blow down process was the same as the other strainers.

The beauty of the LPD Mag is that they are working around the clock.  Using the formula for exponential decay and knowing the volume of water circulating, we can predict when 95% of the magnetic particles will be captured.

Since the installation of the LPD Mag Retrofit Kits, there have been no more pump issues. “We did not find any additional pumps with an issue related to that. So – so far so good!” says Lueder, three months after the first blow down.

Nearly a year after installation, it is evident that the new LPD Mag Y-Strainers with Neodymium magnets, have brought the mechanical room a (silent) sigh of relief.

For more information about the LPD Mag Y-Strainer, please contact Metraflex at 312-738-3800 or visit us online at www.Metraflex.com/lpdmag.
