VRF Dog-Leg
VRF Expansion Joints

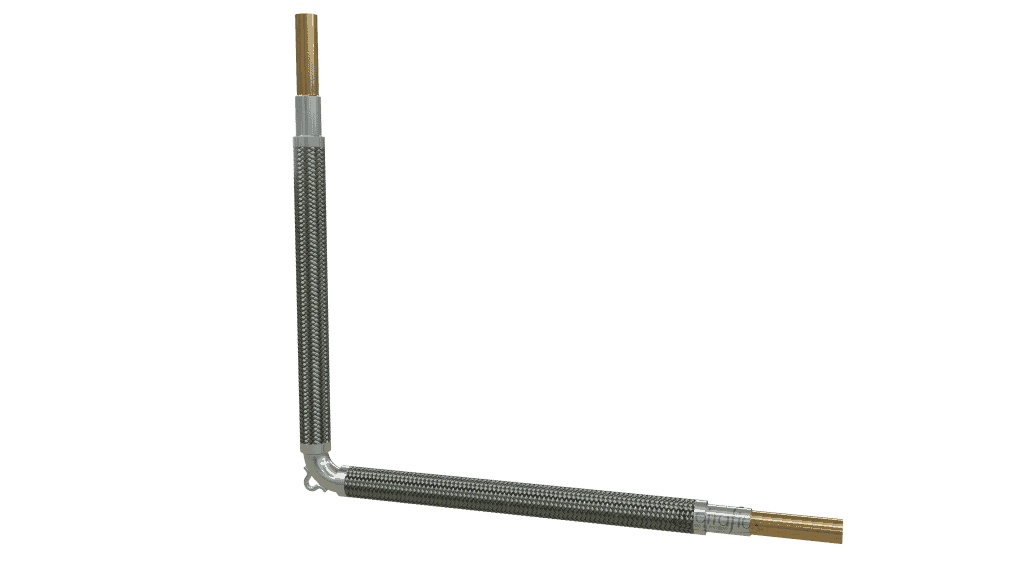

The Dog Leg ± 4inch of movement and 700PSI at 250°F. This configuration is very efficient when installed at the intersection of two pipe runs. Considerations must be made to allow the 90 degree elbow to move.
Product Description
Submittals
Product Description
The Dog Leg ± 4inch of movement and 700PSI at 250°F. This configuration is very efficient when installed at the intersection of two pipe runs. Considerations must be made to allow the 90 degree elbow to move.
Product Highlights
Additional Resources
Submittals
VRF Dog Leg Submittal
VRF Dog-Leg Data Table
| PART # | NOM SIZE | TUBE OD | CENTER TO END | MOVEMENT | PRESSURE RATING | WEIGHT |
|---|---|---|---|---|---|---|
| DLVRF80050 | 1/2″ | 5/8″ | 30-1/8″ | ±4″ | 700 PSI @ 300°F | 3 LBS |
| DLVRF80063 | 5/8″ | 3/4″ | 33″ | ±4″ | 700 PSI @ 300°F | 5 LBS |
| DLVRF80075 | 3/4″ | 7/8″ | 33″ | ±4″ | 700 PSI @ 300°F | 5 LBS |
| DLVRF80100 | 1″ | 1⅛” | 34-1/4″ | ±4″ | 700 PSI @ 300°F | 7 LBS |
| DLVRF80125 | 1¼″ | 1⅜” | 36-3/8″ | ±4″ | 700 PSI @ 300°F | 10 LBS |
| DLVRF80150 | 1½″ | 1 5/8″ | 38-3/8″ | ±4″ | 700 PSI @ 300°F | 13 LBS |
| DLVRF80200 | 2″ | 2⅛” | 42″ | ±4″ | 700 PSI @ 300°F |
ALL DLVRF8’S FOR VRF SERVICE ARE RATED FOR FULL VACUUM.
