Mightysphere

Rubber Expansion Joints

The Mightysphere™ is the joint in the Metrasphere™ family that can handle higher temperature and pressures.  These higher ratings are a result of enhancements we have made to the materials in the Mightysphere. The Metraflex MightySphere™ joint differs from standard…

Product Description

Product Highlights

Additional Resources

Submittals

Product Description

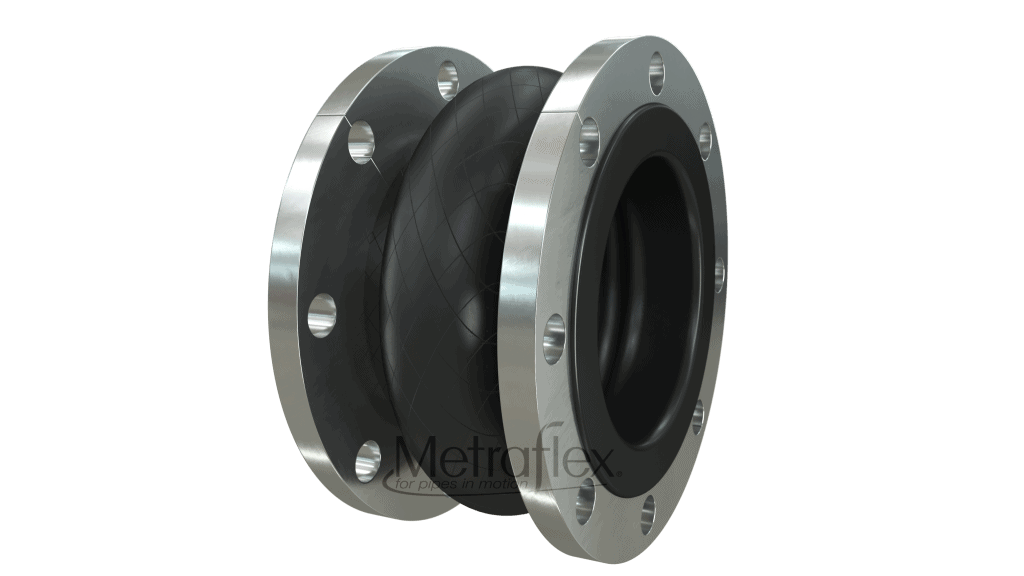

The Mightysphere™ is the joint in the Metrasphere™ family that can handle higher temperature and pressures.  These higher ratings are a result of enhancements we have made to the materials in the Mightysphere. The Metraflex MightySphere™ joint differs from standard EPDM expansion joints by integrating Kevlar® cording instead of nylon reinforcements, peroxide-cured EPDM cover and tube, and the seat is anchored with a solid steel ring.

The Mightysphere is most commonly used as a pump or equipment connector.  It can also be used as an expansion joint if EJMA guidelines are followed.  Control rods are optional but recommended.

Product Highlights

  • The Mightysphere still includes all the value of the Metrasphere:
  • Reduces pipe stress in your system.
  • Features Split Steel Floating flanges to make up for companion flanges that are not properly two holed.
  • Handles movement in all directions.
  • Self-cleaning.
  • Does not require a gasket.
  • See tables for maximum temperature and pressure ratings.

Additional Resources

PDF File - Flat Copy 2 Created with Sketch.

FSA Technical Handbook

FSA-Piping-Technical-Handbook

Download Now Group 3 Copy 3 Created with Sketch.
PDF Icon

Literature

Metraflex-MightySphere.pdf

Download Now Group 3 Copy 3 Created with Sketch.
PDF Icon

O&M

Mightysphere Joints with Split Steel Floating Flanges IOM

Download Now Group 3 Copy 3 Created with Sketch.
PDF Icon

Spec Sheet

Spherical rubber Connector with Kevlar reinforcement

Download Now Group 3 Copy 3 Created with Sketch.
BIM/Revit Icon

BIM / REVIT

View BIM/Revit Design Files

View Drawings Group 3 Copy 3 Created with Sketch.

Submittals

PDF Icon

Kevlar Reinforced EPDM Expansion Joint, 150# Flanged

Single MightySphere™ Data

Group 8 Created with Sketch.

Part Number Joint Size ID (in) Face-To-Face (in) Pressure vs Temperature Movement Capability
170°F 190°F 210°F 230°F 250°F Compression Elongation Lateral Angular (degrees) 3D Drawing
MSRDKSEE0200 2 6 250 245 235 225 215 1/2 3/16 3/8 15 Revit/CAD
MSRDKSEE0250 2-1/2 6 250 245 235 225 215 1/2 3/16 3/8 15 Revit/CAD
MSRDKSEE0300 3 6 250 245 235 225 215 1/2 3/16 3/8 15 Revit/CAD
MSRDKSEE0400 4 6 250 245 235 225 215 5/8 3/16 3/8 15 Revit/CAD
MSRDKSEE0500 5 6 250 245 235 225 215 5/8 3/16 3/8 15 Revit/CAD
MSRDKSEE0600 6 6 250 245 235 225 215 5/8 3/16 3/8 15 Revit/CAD
MSRDKSEE0800 8 6 250 245 235 225 215 5/8 3/16 3/8 15 Revit/CAD
MSRDKSEE1000 10 8 250 245 235 225 215 3/4 1/4 1/2 15 Revit/CAD
MSRDKSEE1200 12 8 250 245 235 225 215 3/4 1/4 1/2 15 Revit/CAD
