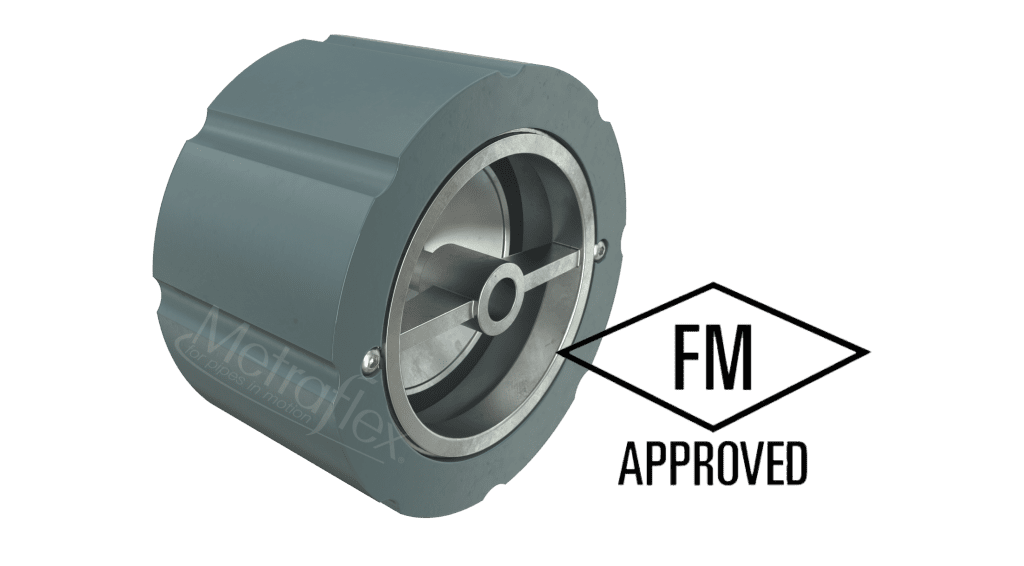

FM approved wafer silent check valve
Product Image
Product Image
FM approved wafer silent check valve
Product Image
Product Image
FM Approved, Lead Free

FM-Approved Wafer Style

Valves

Silent check valve with stainless steel trim and single, center-guided disc Eliminate water hammer with a Wafer Style silent check valve that operates smoothly and silently. The Metraflex #700 Series features a center guided single disc and bronze to bronze…

Product Description

Product Highlights

Additional Resources

Submittals

Product Description

Silent check valve with stainless steel trim and single, center-guided disc

Eliminate water hammer with a Wafer Style silent check valve that operates smoothly and silently. The Metraflex #700 Series features a center guided single disc and bronze to bronze seating with special stainless steel spring control to insure positive, noiseless opening and closing.

  • Metraflex Check Valves are applicable to all water systems
  • Rated to both 125 lb. And 250 lb. Flange class
  • Made in eight standard sizes: 2″ through 10″
  • Work in any position
  • Activated at 1/4 to 1/2 psi
  • Constructed of cast iron body with stainless steel trim
  • Compacted into shortest possible face to face dimensions
  • Designed with larger-than-pipe-size flow area for low pressure loss with maximum efficiency.
  • Intended for liquid service only.
  • Fits both 250# Class bolt circle and 125# Class bolt circle.

Product Highlights

  • Low pressure loss
  • 2” through 10”
  • Activated at 1/4-1/2 psi
  • Cast iron body and stainless steel trim
  • Compact face-to-face
  • 125#

Submittals

Wafer Style Silent Check Valve 125lb Class with Stainless Steel Trim

Group 8 Created with Sketch.

METRAFLEX PART NO.Pipe SizeO.D.Face-to-FacePressure / TempWeight (lbs)CVBolt SizeNo. of Bolts3D Drawing
CVOSSFM7022″4-1/4″2-5/8″200 PSI @ 150°F6665/8″4Revit/CAD
CVOSSFM70252.5″5″2-7/8″200 PSI @ 150°F8885/8″4Revit/CAD
CVOSSFM7033″5-3/4″3-1/8″200 PSI @ 150°F111305/8″4Revit/CAD
CVOSSFM7044″7″4″200 PSI @ 150°F182285/8″8Revit/CAD
CVOSSFM7055″8-3/8″4-5/8″200 PSI @ 150°F283503/4″8Revit/CAD
CVOSSFM7066″9-3/4″5-1/2″200 PSI @ 150°F435203/4″8Revit/CAD
CVOSSFM7088″13-3/8″6-1/2″200 PSI @ 150°F869003/4″8Revit/CAD
CVOSSFM71010″16″8-1/4″200 PSI @ 150°F13314507/8″12Revit/CAD

Wafer Style Silent Check Valve 250lb Class with Stainless Steel Trim

Group 8 Created with Sketch.

METRAFLEX PART NO.Pipe SizeO.D.Face-to-FacePressure / TempWeight (lbs)CVBolt SizeNo. of Bolts3D Drawing
CVOSSFM7588″13-3/8″6-1/2″400 PSI @ 150°F869007/8″12Revit/CAD
CVOSSFM76010″16″8-1/4″400 PSI @ 150°F13714501″16Revit/CAD
