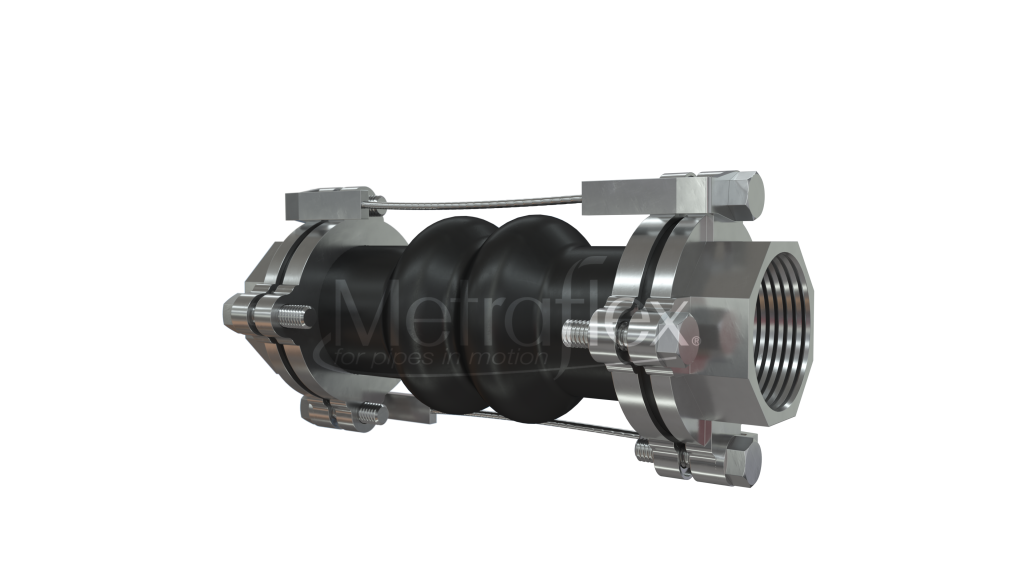

Doublesphere Union

Rubber Expansion Joints

The Doublesphere Union features control cables and a reinforced neoprene body.  It is the perfect joint to use to add in flexibility for your coil hook ups or other equipment See tables for maximum temperature and pressure ratings. How NOT…

Product Description

Product Highlights

Additional Resources

Submittals

Product Description

The Doublesphere Union features control cables and a reinforced neoprene body.  It is the perfect joint to use to add in flexibility for your coil hook ups or other equipment

See tables for maximum temperature and pressure ratings.

How NOT To Use a Rubber Expansion Joint

Product Highlights

  • FPT union ends
  • Neoprene Body
  • Control cables included
  • Connect with threaded union ends
  • Reduce noise and vibration
  • Compression: Up to 1-1/4-inch
  • Lateral movement: Up to 1-inch
  • Angular movement: Up to 50 degrees
  • Max pressure: 150 psi • Max temperature: 180ºF

Additional Resources

PDF Icon

Literature

Metraflex_Non-Metallic.pdf

Download Now Group 3 Copy 3 Created with Sketch.
PDF Icon

O&M

Metraflex_Spherical_joints_OM.pdf

Download Now Group 3 Copy 3 Created with Sketch.
PDF Icon

Spec Sheet

Metraflex-RbrExp-Jnts-Spec

Download Now Group 3 Copy 3 Created with Sketch.
BIM/Revit Icon

BIM / REVIT

Download from Thomasnet

View Drawings Group 3 Copy 3 Created with Sketch.

DOUBLESPHERE UNIONS

Group 8 Created with Sketch.

MODEL# JOINT SIZE
I.D
(in)
END TO
END
(in)
AXIAL
COMPRESSION
(in)
AXIAL
EXTENSION
(in)
LATERAL
OFFSET
(in)
ANGULAR
DEFLECTION
WEIGHT
lbs
SPRING
RATE
(lbs/in)
EFFECTIVE AREA
(in²)
3D DRAWING
TSUC0075 3/4″ 8″ 7/8″ 1/4″ 7/8″ 30° 2 94 3 Revit/CAD
TSUC0100 1″ 8″ 7/8″ 1/4″ 7/8″ 25° 3 110 3 Revit/CAD
TSUC0125 1- 1/4″ 8″ 7/8″ 1/4″  7/8″ 25° 4 130 4 Revit/CAD
TSUC0150 1- 1/2″ 8″ 7/8″ 1/4″  7/8″ 20° 5 143 5 Revit/CAD
TSUC0200 2″ 8″ 7/8″ 1/4″  7/8″ 15° 6 160 6 Revit/CAD
TSUC0250 2-1/2″ 8-7/8″ 7/8″ 1/4″  7/8″ 12° 8 310 10 Revit/CAD
TSUC0300 3″ 9″ 7/8″ 1/4″  7/8″ 10° 10 320 11 Pending
