Pump Connector
Product Image
Pump Connector
Product Image

Model SLPC

Flexible Metal Hose

The SLP is an off the shelf model with corrugated stainless-steel hose and braid, carbon steel plate flanges, and all welded construction. This is a longer flex connector than the MM, allowing it to take up more offset. It is…

Product Description

Additional Resources

Submittals

Product Description

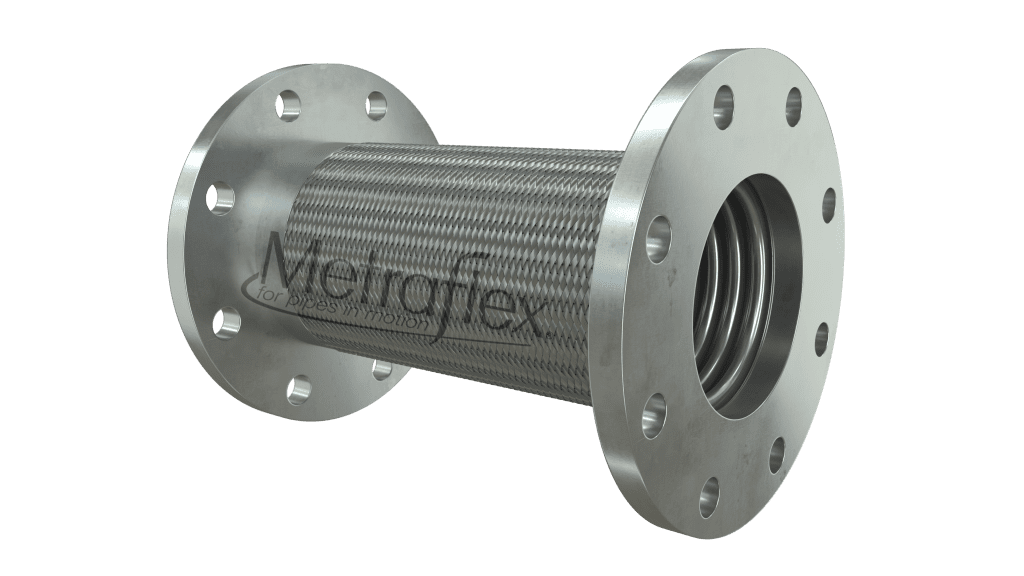

The SLP is an off the shelf model with corrugated stainless-steel hose and braid, carbon steel plate flanges, and all welded construction. This is a longer flex connector than the MM, allowing it to take up more offset. It is primarily used as a pump connector. Available in both import and domestic models. Custom versions are available, contact your local representative or Metraflex for details.

  • Refer to table for temperature and pressure ratings

Product Highlights

Additional Resources

PDF File - Flat Copy 2 Created with Sketch.

2022 Hose & Braid Catalog

Metraflex Hose & Braid Catalog

Download Now Group 3 Copy 3 Created with Sketch.
PDF Icon

Literature

Metraflex_Hose-Braid.pdf

Download Now Group 3 Copy 3 Created with Sketch.
PDF Icon

Spec Sheet

Metraflex-Flexible-Hose-Connectors-Spec.doc

Download Now Group 3 Copy 3 Created with Sketch.

Model SLP

Group 8 Created with Sketch.

MODEL NO. PIPE
SIZE
A± 1/8″ PERMANENT OFFSET INTERMITTENT OFFSET PRESSURE PSI
@ 70° F
Weight
(lbs)
3D
DRAWING
SLPC0250 2.5″ 10-1/4″ .75″ .375″ 345 13 Revit/CAD
SLPC0300 3″ 10-5/8″ .75″ .375″ 389 14 Revit/CAD
SLPC0400 4″ 11-3/4″ .75″ .375″ 300 19 Revit/CAD
SLPC0500 5″ 13-5/8″ .75″ .375″ 220 27 Revit/CAD
SLPC0600 6″ 14-1/8″ .75″ .375″ 200 30 Revit/CAD
SLPC0800 8″ 15-3/8″ .75″ .375″ 190 62 Revit/CAD
SLPC1000 10″ 17-3/4″ .75″ .375″ 150 68 Revit/CAD
SLPC1200 12″ 18-3/8″ .75″ .375″ 125 153 Revit/CAD
SLPC1400 14″ 20″ .75″ .375″ 105 Revit/CAD
