Product Description

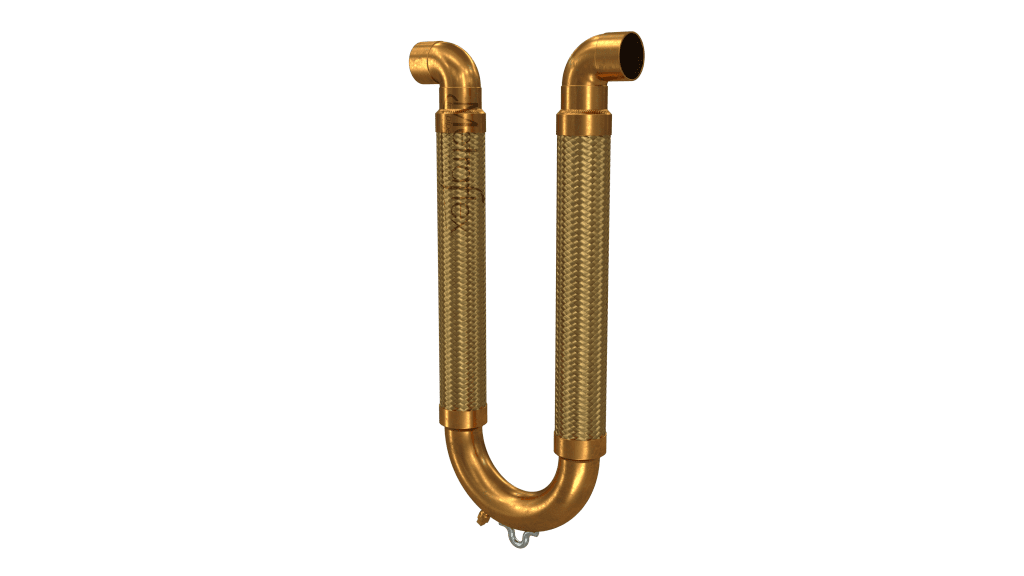

The MLS model is the copper Metraloop in the Metraloop family.  For potable water applications use the  UPC listed version.

The typical Metraloop installation is axial for thermal applications, or in any possible direction for seismic applications.  And when we say any possible direction that includes axial, lateral and angular.

The Metraloop utilizes the time-tested hose and braid technology, installed perpendicular to the pipeline.  Like all the products in the Metraloop family of products, the Copper Metraloop does not develop thrust loads and this results in almost eliminating the need for guides, simplifying anchor design when compared to in line bellows expansion joints.  When you place a Metraloop in your line, you instantly reduce the stresses in the line.

Options

  • Can be cleaned and bagged for med gas service.
  • Custom configurations available.

Product Highlights

  • It takes up less space and takes less time to install than a hard pipe loop.
  • It moves in every direction.
  • It is simply a smarter solution.
  • Proudly made in the USA
  • Stock models and custom models available

Additional Resources

PDF File - Flat Copy 2 Created with Sketch.

Design Guide

Metraloop Design Guide

Download Now Group 3 Copy 3 Created with Sketch.
PDF File - Flat Copy 2 Created with Sketch.

Pressure Loss Data

Metraflex Metraloop Pressure Drop Charts

Download Now Group 3 Copy 3 Created with Sketch.
PDF Icon

Literature

Metraloop Product Catalog

Download Now Group 3 Copy 3 Created with Sketch.
PDF Icon

Spec Sheet

Standard Copper Metraloop

Download Now Group 3 Copy 3 Created with Sketch.

Submittals

PDF Icon

Copper Sweat Ends ±1.5-inch movement

PDF Icon

Copper Sweat Ends ±4-inch movement

Sweat Ends ±1.5 inches NSF 371 Lead Free

Group 8 Created with Sketch.

PIPE
SIZE
MODEL #MOVEMENTEND TO ENDLENGTHPSI
SINGLE
BRAID
*PSI
DOUBLE
BRAID
*SPRING
FORCE
LBS.
WEIGHT
LBS.
3D DRAWING
1/2″ (15mm)MLS30050±1.5″7-3/4″11-1/2″7061130452Revit/CAD
3/4″ (20mm)MLS30075±1.5″9-1/2″13-1/8″577923472Revit/CAD
1″ (25mm)MLS30100±1.5″10-1/4″14-5/8″470752532.5Revit/CAD
1-1/4″ (30mm)MLS30125±1.5″11-1/8″16-3/8″361577663.5Revit/CAD
1-1/2″ (40mm)MLS30150±1.5″11-5/8″17-1/4″329526704Revit/CAD
2″ (50mm)MLS30200±1.5″13-3/8″18-3/4″317507789Revit/CAD
2-1/2″ (65mm)MLS30250±1.5″15″19-3/4″2724358312Revit/CAD
3″ (80mm)MLS30300±1.5″16″21-1/2″2013229018Revit/CAD
4″ (100mm)MLS30400±1.5″20″24-3/4″14222712026Revit/CAD

Sweat Ends ±4 inches NSF 371 Lead Free

Group 8 Created with Sketch.

PIPE
SIZE
MODEL #MOVEMENTEND TO ENDLENGTHPSI
SINGLE
BRAID
*PSI
DOUBLE
BRAID
*SPRING
FORCE
LBS.
WEIGHT
LBS.
3D DRAWING
1/2″ (15mm)MLS80050±4″7-3/4″15-3/8″7061130452.5Revit/CAD
3/4″ (20mm)MLS80075±4″9-1/2″17-1/4″577923472.5Revit/CAD
1″ (25mm)MLS80100±4″10-1/4″19-1/4″470752533Revit/CAD
1-1/4″ (30mm)MLS80125±4″11-1/8″21-3/8″361577664Revit/CAD
1-1/2″ (40mm)MLS80150±4″11-5/8″22-1/2″329526704.5Revit/CAD
2″ (50mm)MLS80200±4″13-3/8″24-3/4″3175077812Revit/CAD
2-1/2″ (65mm)MLS80250±4″17″26-1/2″2724358318Revit/CAD
3″ (80mm)MLS80300±4″18-1/2″28-1/2″2013229024Revit/CAD
4″ (100mm)MLS80400±4″22″32″14222712031Revit/CAD
